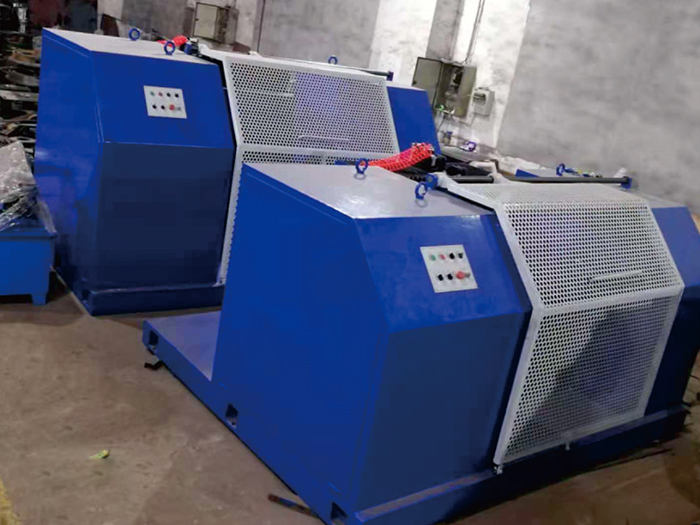

Spool Take-Up Machine

The SG series spool take-up machine independently developed, designed and produced by Wuxi Kangstar Machinery Electric Co., Ltd. is suitable for the take-up of the LZ straight-in type, LT water tank type, and LW pulley-type wire drawing machine. Machine features: V-belt, chain or timing belt drive, torque motor or frequency conversion motor drive, polished rod cable, hand wheel or pneumatic locking, I-shaped wheel passively rises by conical rotation or automatically rises pneumatically.
 Note: The speed and top tightening device can be set according to the needs of users

Typical model		SG1150	SG800	SG630	SG300
工字輪外徑 I-wheel outer diameter	mm	1150	800	630	300
收線直徑Take-up diameter	mm	4.5-3.0	3.5-2.0	2.5-1.5	1.5-0.8
收線力矩Take-up torque	N·m	125	100-80	80-60	60-40
電機功率Motor Power	Kw	30-22	18.5-15	15-11	11-7.5
拖動方式Drag method		力矩電機、變頻電機 Torque motor, variable frequency motor
